200KN Hydraulic Type Bend Testing Machine for 6 to 40 mm Diameter Steel Rods

Vertical type Bend Testing Machine for Steel Rods.

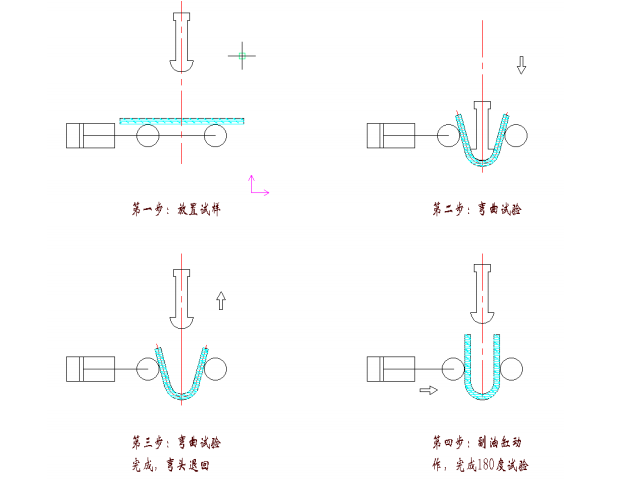

Steel bending tester is a special equipment for bending test of metal materials-bars, plates and rebar for construction. This machine adopts hydraulic two-way loading, and the two-way lead screw is used to advance and retreat synchronously through the hand wheel to adjust the distance between the bending support rods. The plug-in bending head is quick and easy to change. It is easy to bend the reinforced specimen to 180 ° at one time. The bending angle of the sample can be displayed in real time, which is convenient for the user to complete the test of various bending angles. The bending angle can be communicated with the PLC in real time and displayed on the display.

Applicable Standards
GB / T232-2010 "Bend Test Method for Metal Materials"
GB 1499.2-2018 "Steel for reinforced concrete Part 2: Hot-rolled ribbed steel" Process performance in 7.5.

Specifications:

Max Bending test force: 200kN

Roller diameter: 120mm

Distance between rollers: 10-340mm (adjustable)

Bending indenter diameter: 6-200mm (optional)

Bar sample diameter: Φ6 ~ Φ40 mm

Sheet sample thickness × height: (6 ~ 40) x50 mm

Bending angle: 180 °

Dimensions: 1100 × 1050 × 2100mm

Weight about 950kg

Equipment structural characteristics

1.Adopt vertical structure, convenient test operation. The integrated design of the main engine oil source saves space on the equipment.
2.Use PLC and touch screen mode to realize equipment control and display.
3. The span of the two curved support rollers is adjusted by a screw rod. It only needs to turn the hand wheel during adjustment, and there is no need to tighten it, which is very convenient.
4. The roller stand is equipped with an angle meter, which is convenient to observe the bending angle in real time and read the numbers.

5. Equipped with an encoder on the mandrel of the bending support roller, which can communicate the bending angle in real time and upload the PLC to control the bending test of the equipment.
6.It is equipped with a dust-proof device to prevent the oxide scale falling on the steel bar from falling on the screw during the test and affecting the span adjustment.
7.During the test, the steel specimen can be bent and formed at one time.
8. It can display the bending speed and bending angle in real time.
9. Convenient operation, quick and easy replacement of bent core, one person can complete all work.
10. The experimental space is completely enclosed, and the operation is safe and reliable.
11. A sample recovery truck is set at the bottom of the device to facilitate sample recovery.
